API 5CT L80 casing tube is widely applied in petroleum, construction, shipbuilding, smelting, aviation, electric power, food, paper, chemical industry, medical equipment, heat exchangers etc.

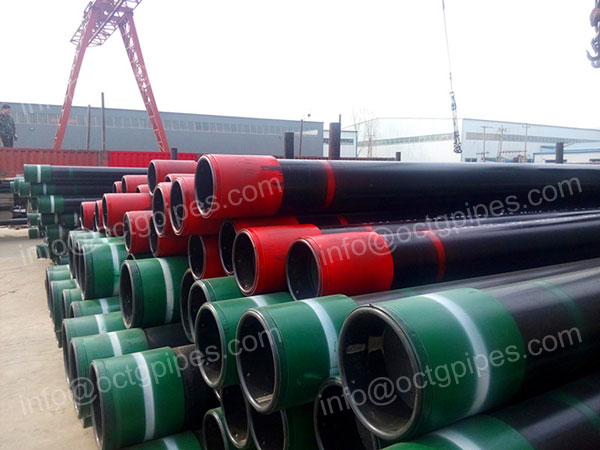

API 5CT L80 casing tube

Grade: L80-1, L80-9Cr, L80-13Cr
Standard: API 5CT
OD:114-508mm;
Length: R-1:4.88~7.62m;
               R-2:7.62~10.36m;
               R-3:more than 10.36m;


L80 well casing is placed down-hole to offer structural integrity to the wellbore and must withstand external-collapse pressure from rock formations and internal-yield pressure from fluid and gas. It must hold own deadweight and withstand the torque and transaxial pressure placed on it while running down-hole.

Mechanical Properties:
Tensile Strength 655 MPa min 95,000 psi min
Yield Strength 552 MPa min 655 MPa max
80,000 psi min 95,000 psi max
Total Elongation Under Load 0.500 % -
Hardness 23 Max HRC 241 Max HBW
